UNIPACK 700 Series

One Machine For All Pods

Dual Powder Dishwasher Pods Manufacturing Equipment

All you wantFLEXIBLEHIGH SPEEDMULTI SHAPESin One System

The Features That You Need

Accurate Dosing

Accurate Dosing

The high accuracy dosing piston pump or servo agur ensure each dose meets the requirements of accuracy.
Up to 5 Chambers

Up to 5 Chambers

Produce the pods with design up to 5 chambers. A pod with Mix of powder and liquid or granules with liquid deliveries the maxium performance.
Multiple Pod Types

Multiple Pod Types

The system has three different types of dispensing unit. Liquid/Powder/Beads you can have a mix of different materials with one click.
Full servo control

Full servo control

You can communicate to the machine by the HMI interface to countrol. Less machincal work and faster, easiler.
Continuous Production

Continuous Production

An automatic splicer can switch rolls as soon as one roll of water-soluble foil is empty.As a result, the efficiency of your production is increased.
High Speed

High Speed

With the high speed filling units the system can reach max 1400ppm.
Quick Change over

Quick Change over

This system is designed to be flexible for both molds change over and conbination of materils.For materials change just need one click.
Easy Updating

Easy Updating

Whenever the market changes you need to update your machine for new products. It cost less and very easy to do.

A New Era of Product Design and Manufacturing


A productreacts impressive coolwith new design ideas.

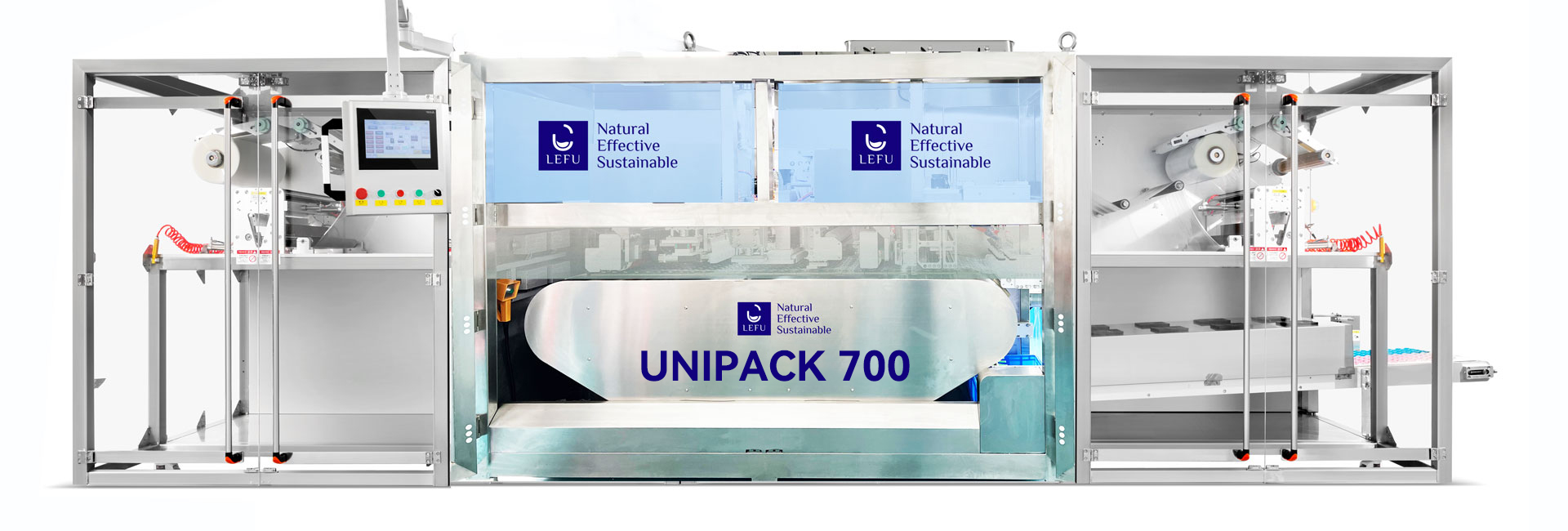

UNIPACK 700 Series

UNIPACK 700 Series are designed to produce dishwasher pods with max of two chamber of powders and 5 chamber of liquids. Dual powder pods can only be done with flat bed machines and that becomes an advantage.



01

Extent shelf-life

Avoid ingredients decompond or react by filling the ingredienst in one specific chamber. This can be the special advantage only possible from the pods.

02

Improve Performance

By store the ingredienst in specific chamber it allows the ingredients to maintain it's maxium performance.

03

Expand products range

With this new technology of product forming you are able to produce products that is brand new.

Technical specifications

Max. Volume (ml)

50

Max. Output (p.p.m.)

1400

Max. Format (mm)

140 x 140

Min. Format (mm)

30 x 30

Footprint

5000×1540×2200mm

Dosing Type



Liquid

up to 5

Powder

2

Granules

1

Mix Form

2 Powder/Granules+5 Liquids

Monodose (Single Chamber) YES
Dual Chamber YES
Triple Chamber YES
5 Chamber Designs YES
Powder + Liquid  YES
Powder + Liquid + Granules YES

We help to design the shapes so to make your products to be different.

Let's deliver the right solution for your business.

With more than 12 years experience in water soluble pouches industry we strongly believe a new revolution is happening in the industry. Our future cleaning industry is heading to a more eco friendly,sustainable way.

If you have questions please feel free to contact us
Please type your full name.
Invalid Input
Invalid Input
Invalid email address.
Invalid Input

I'm Not a Robot

Invalid Input
Invalid Input

INFORMATION

Unimasses Group was established in 2012 when the laundry pod products were first introduced into the consumer market. The initial goal for the company was to design, engineer and build manufacturing systems for the detergent packaging industries with new technologies and materials. Base on the idea we now can offer a one stop solution for the pods prodcution.
